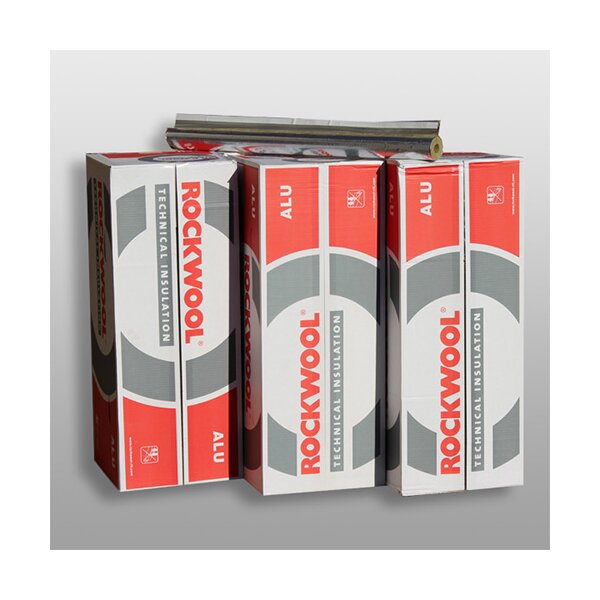

Insulating shells Rockwool 800
Description:

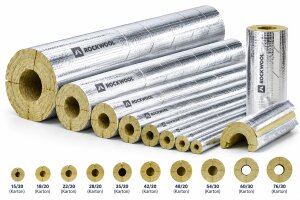

The pipe shell Rockwool 800 is made of concentrically wound rock wool.
It is laminated with a mesh-reinforced, tear-resistant aluminium sandwich foil with a self-adhesive overlap, slit on one side and sawed on the inner wall for easier installation.
Rockwool 800 insulation shells are:
- non-combustible
- heat-insulating
- sound-absorbing
- water-repellent
- pressure resistant and dimensionally stable
- quick and easy to lay
- provided with an effective vapour barrier
- manufactured in AS quality
Technical data:
- sign Description/measured value Unit Standard/regulation
- Building material class A2 non-combustible A2 DIN 4102-1
- Melting point > 1000 °C DIN 4102-17
- Upper application temperature rock wool side up to 250 °C
- Aluminium side up to 80 °C
- calculated value of thermal conductivity see manufacturer's DoP
- Specific heat capacity cp 0.84 kJ/(kgK)
- Diffusion-equivalent air layer thickness sd > 100 m DIN 52615
- AS quality Application in combination AGI Q 135 with austenitic Steels
- silicone-free free of paint wetting substances according to VW test 3.10.7
- hydrophobic = 10 vol. % water absorption AGI Q 136
| Item information |
Value |
| Areas of application: |
|
| Shipping weight: |
9,72 kg
|
| Item weight: |
9,72 kg
|
| Content: |
9,00 m
|
